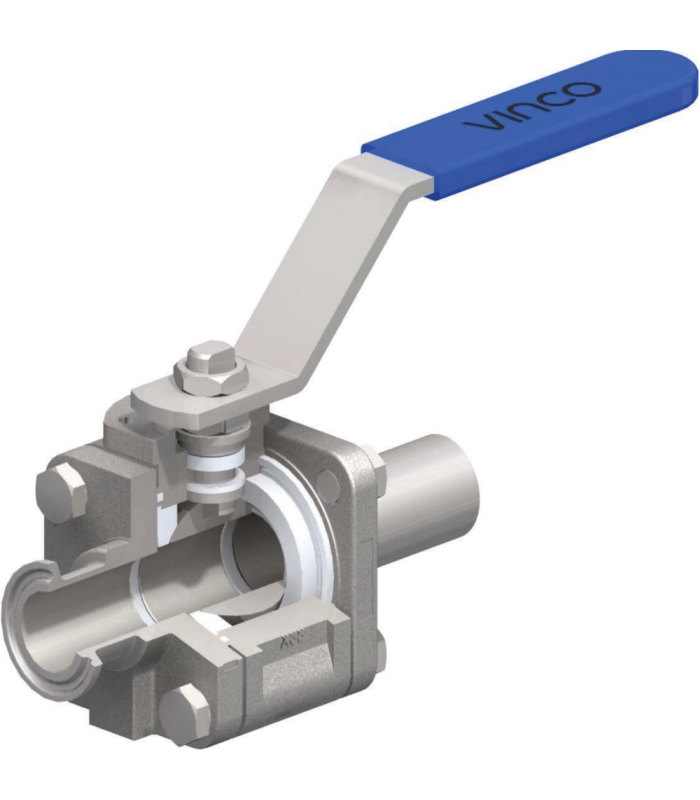

Sanitary Ball Valve - XP Series 1"

$615.60
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Product Code:
XP31T015C1C1CFG24L

3-Piece Bolted Type

ASME True Bore

c/w ATEX Certified

Interior Surface Finish.: Ra Max 0.5 µm M.P (SF1)

Exterior Surface Finish.: Ra Max 0.8 µm M.P (SF3)

Size: 1" (Serial Number: 2021LF490228001)

Ends: Clamps

Read moreShow less
Last items in stock 1 Item
Wishlist0
Description

The XP Series is a 2-way sanitary floating ball valve specifically designed for applications in the Pharmaceutical and Food & Beverage industries. This valve is engineered to meet the high purity, drainability, and cleanability requirements of these industries, particularly in applications such as clean steam and clean gases. The standard welding connections are made from stainless steel A351 CF3M, which has controlled sulphur and ferrite content below 3% to enhance weldability and prevent corrosion, The valve's high-quality investment cast construction makes it a suitable choice for meeting the requirements of technical rooms.

Pressure ratings: Up to CL600 / PN100

Temperature range: -50°C to 200°C (-58°F to 392°F)

Size range: ½" - 6" / DN10 - 150

Body style: Three Piece Bolted | Tube/Full Bore

End connections:  Butt Weld | Hygienic Clamp

Body materials: A351 CF3M

Seat materials: TFM1600

Read moreShow less
Product Details
XP31T015C1C1CFG24L

Sanitary Ball Valve - XP...

$615.60
